EPEVER MPPT Solar Charge Controller 40A 12V/24V Auto Work With Remote Meter
Overview:
Tracer-AN (10A-40A) series charge controller adopts MPPT (Maximum Power Point Tracking) technology. In any situation, it can track the maximum power point (MPP) of the solar array and obtain the maximum solar energy rapidly and accurately. It can generate up to 30% more power compared with the PWM charge controller. This series can accept max.100V Voc and work with the solar panels which are designed for on-grid applications. The multifunction LCD display the system status vivdly.
|
|
Model |

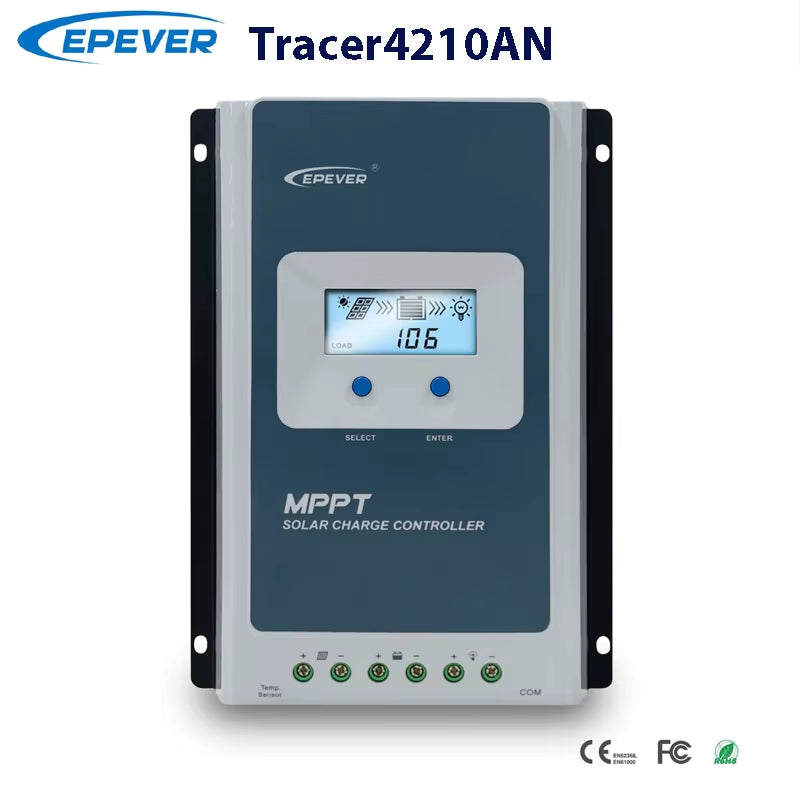

Tracer4210AN |
Nominal system voltage |
12/24VDC/Auto |
Battery type |
Lead-acid(Sealed/Gel/Flooded)/Lithium(LiFePO4/Li(NiCoMN)O2)/User |
Battery input voltage range |
8~32V |
Rated charge current |
40A |
Rated discharge current |
40A |

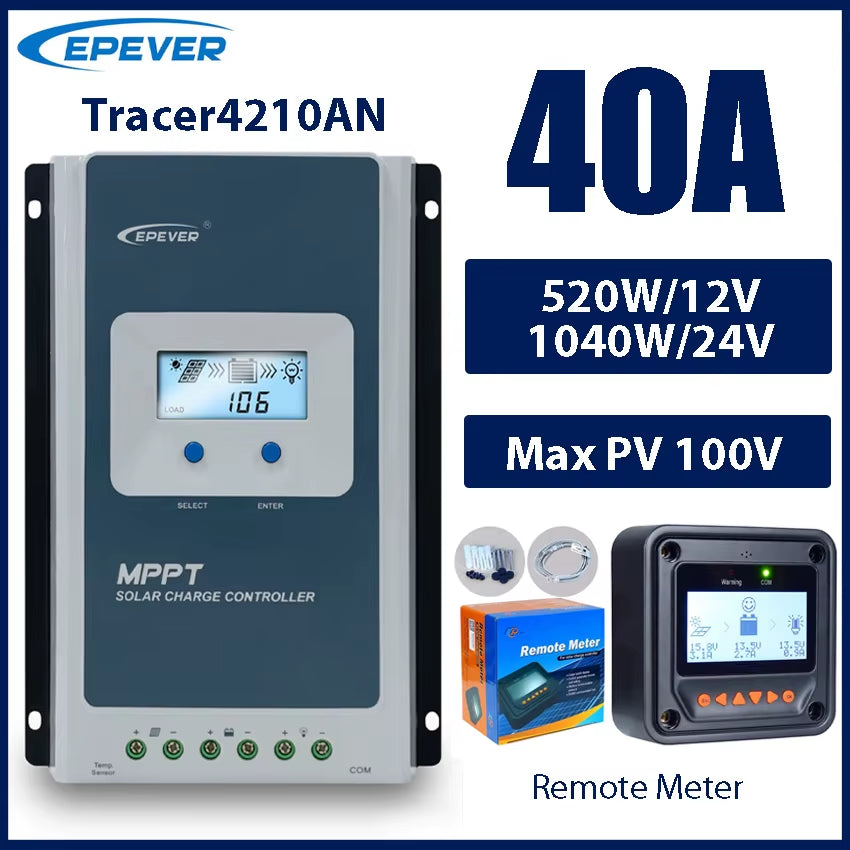

Rated charge power |
520W/12V |
Max. conversion efficiency |
≤98.0% |
Tracking efficiency |
≥99.5% |
MPP voltage range |
(Battery Voltage+2V)~72V |
Max. PV open circuit voltage |
100V(At minimum operating enviornment temperature) |
Equalization voltage |
Sealed:14.6V,Flooded:14.8V,User-defined:9-17V |
Boost voltage |
Gel:14.2V,Sealed:14.4V,Flooded:14.6V,User-defined:9-17V |
Float voltage |
Gel/Sealed/Foolded:13.8V,User-defined:9-17V |
Low voltage reconnect voltage |
Gel/Sealed/Foolded:12.6V,User-defined:9-17V |
Low voltage disconnect voltage |
Gel/Sealed/Foolded:11.1V,User-defined:9-17V |
Self-consumption |
≤12mA |
Temperature compensation |
-3mV/℃/2V(Default) |
Relative humidity |
≤95%,N.C. |
Enclosure |
IP30 |
Communication interface |
RS485(RJ45) |
Grounding |
Common Negative |
Operating temperature range |
-25℃~+45℃(100% input and output) |
Dimensions(LxWxH)(mm) |
252 x 180 x 63 |
Net weight |
1.65kg |

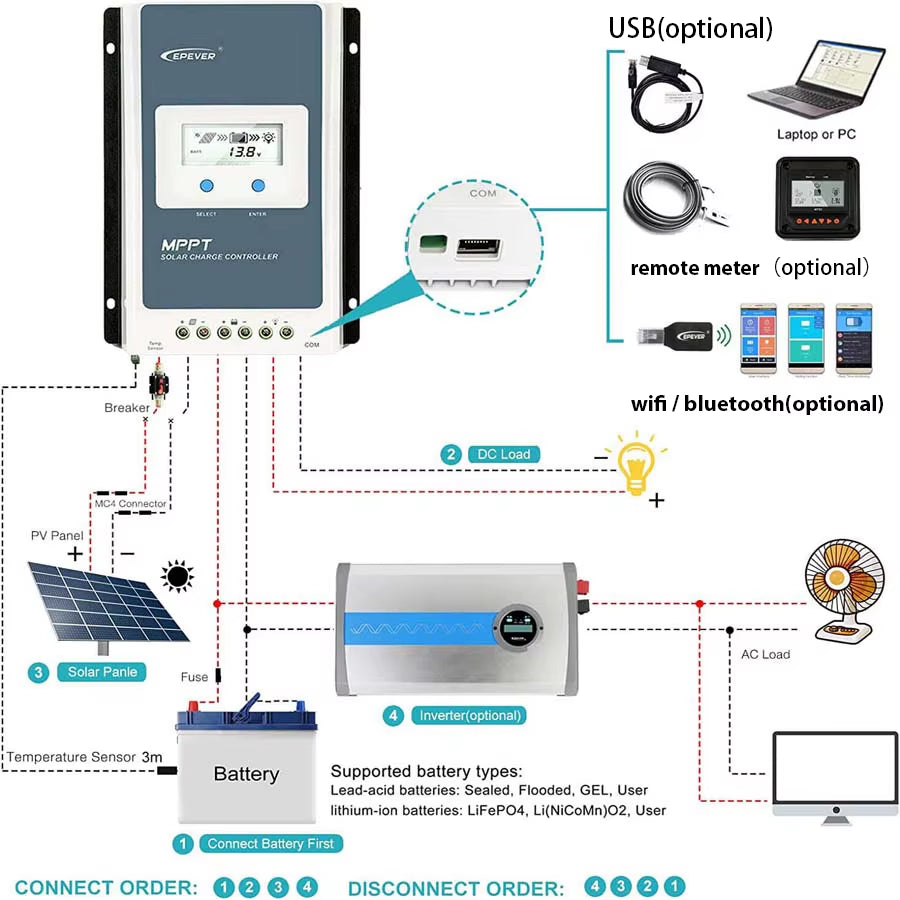

Steps: Connect solar system in this order: 1.battery--> 2. load--> 3.PV array, and disconnect solar system in the reverse order >3. >2. >1.
Battery must be connected first! Never connect soalr panel array to controller Without/Before connect battery.
DO NOT connect any inverter/wind/Alternator or Charger into the charge controller directly ! You should connect with battery and add fuse.
If there is a long distance between the PV array and controller or between the controller and battery, larger size wires should be used to reduce the voltage drop and improve performance. (Recommended wire size is only for reference.)
How to program for Lithium Battery?
Via Remote Meter (Accessories needed: MT50/MT52)
Via PC Software (Accessories needed RS485 cable :CC-USB-RS485-150U )
Via Phone APP (Android or IOS), (Accessories needed：WIFI or BLE)

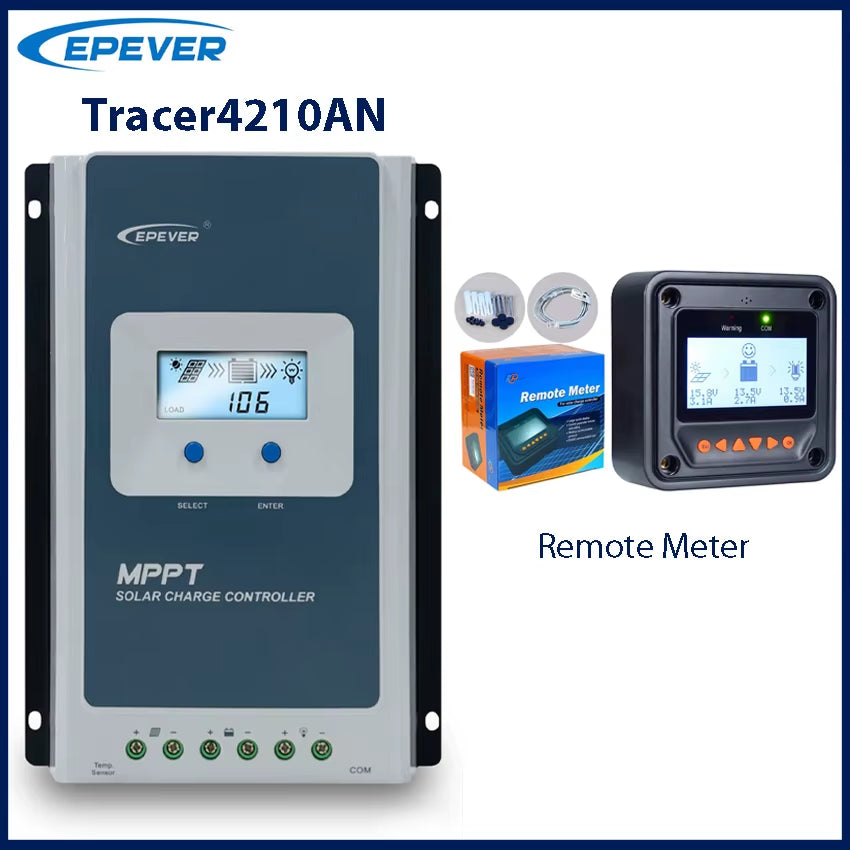

EPEVER Remote Meter
Overview:
Remote Meter is a new generation of remote meters designed based on the latest controller communication protocol and voltage technical standards. The remote meter, using the controllers equipped with RJ45 port, can monitor the controller's real-time working status and program the parameters.
Features:
For Tracer-AN/BN/BP, TRIRON-N, XTRA-N, LS-B, VS-BN, iTracer, eTracer
Automatic identify and diaplay the type, model and relevant parameter data of controllers
Real-time display the operational data and working status of the connection devices in digital, graphic and textual forms by a large-screen multifunction LCD
Direct, convenient and rapid operation of six nevigation function keys
Both data and power flowing in the same lead, no need for external power
Real-time data monitoring and remote load switchover of the controllers, and data browse and modification of device parameters, charge control parameters and load control parameters
Real-time display and acoustic alarm of failure information of the connection devices
Longer communication distance based on RS485
Package List | |
|
|
Remote Meter IS OPTIONAL!
